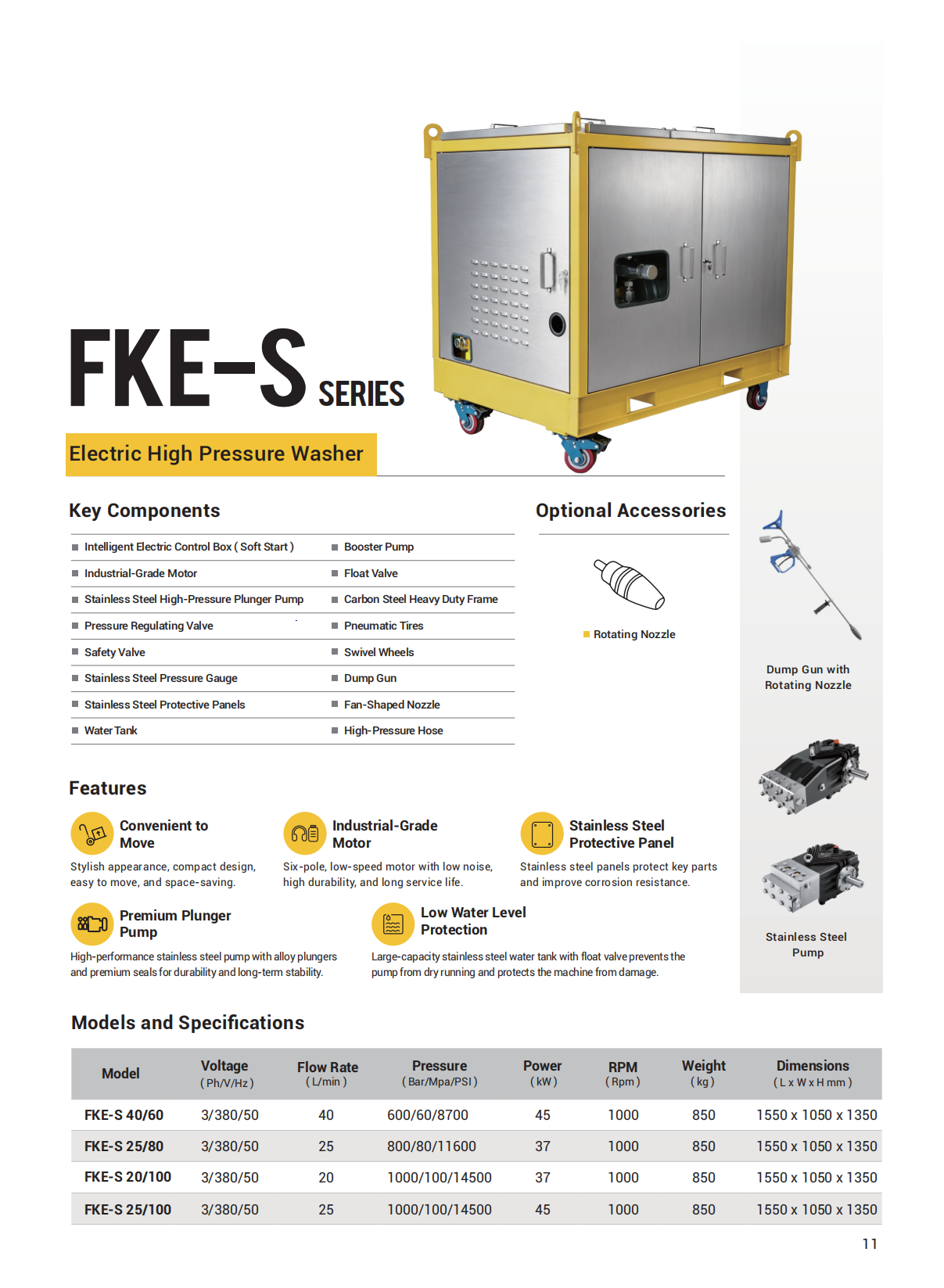

Key Components |
Intelligent Electric Control Box ( Soft Start ) |
Industrial-Grade Motor |
Stainless Steel High-Pressure Plunger Pump |
Pressure Regulating Valve |
Safety Valve |
Stainless Steel Pressure Gauge |
Stainless Steel Protective Panels |
Water Tank |
Key Components |
Booster Pump |
Float Valve |
Carbon Steel Heavy Duty Frame |
Pneumatic Tires |
Swivel Wheels |
Dump Gun |
Fan-Shaped Nozzle |
High-Pressure Hose |
Optional Accessories |
Rotating Nozzle |
Model | Voltage (Ph/V/Hz) | FlowRate (L/min) | Pressure (Bar/Mpa/PSI) | Power ( kW ) | RPM | Weight ( kg ) | Dimensions (L x W x H mm) |
FKE-S 40/60 | 3/380/50 | 40 | 600/60/8700 | 45.0 | 1000 | 850 | 1550x1050x1350 |
FKE-S 25/80 | 3/380/50 | 25 | 800/80/11600 | 37.0 | 1000 | 850 | 1550x1050x1350 |
FKE-S 20/100 | 3/380/50 | 20 | 1000/100/14500 | 37.0 | 1000 | 850 | 1550x1050x1350 |
FKE-S 25/100 | 3/380/50 | 25 | 1000/100/14500 | 45.0 | 1000 | 850 | 1550x1050x1350 |

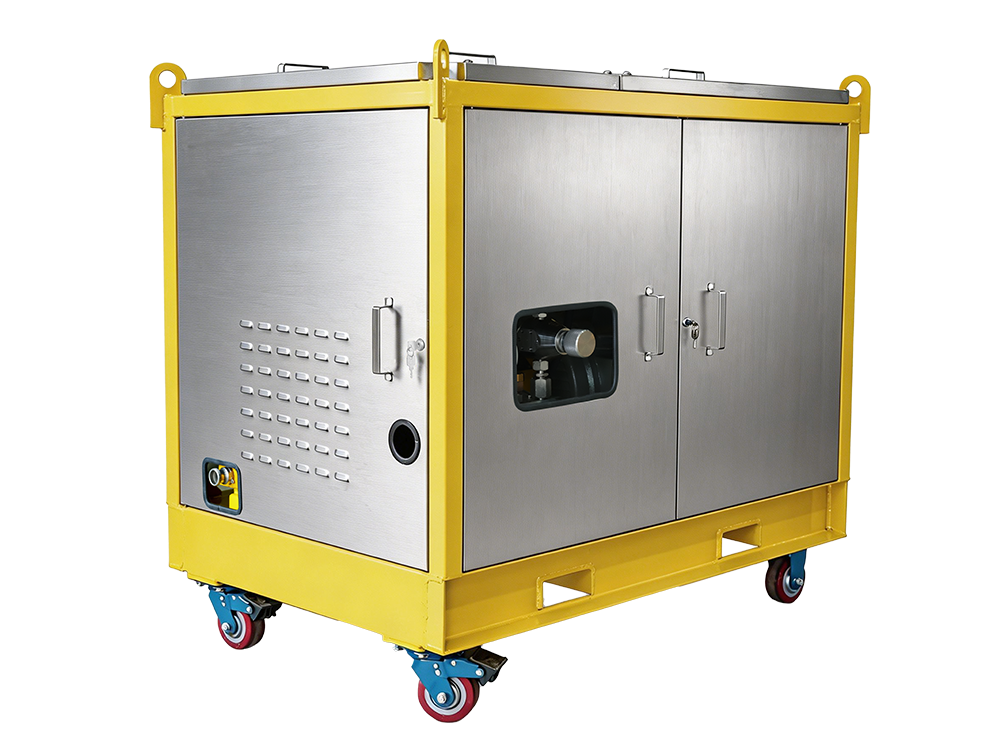

Stylish appearance, compact design, easy to move, and space-saving.
Six-pole, low-speed motor with low noise, high durability, and long service life.
Soft starter ensures smooth motor start-up, reducing wear and extending service life.
High-performance stainless steel pump with alloy plungers and premium seals for durability and long-term stability.
Large-capacity stainless steel water tank with float valve prevents the pump from dry running and protects the machine from damage.
Equipped with stainless steel protective panels to enhance corrosion resistance and protect critical components, making it ideal for marine and harsh industrial environments.
