Fussen ATEX pressure washers are designed for professional high-pressure cleaning in industrial environments where flammable gases, vapors, or other potentially explosive atmospheres may be present. They provide the cleaning performance required for demanding industrial applications while incorporating explosion-proof electrical components suitable for hazardous working conditions.
Our explosion-proof high-pressure washer range includes multiple pressure and flow configurations for different cleaning requirements, from routine equipment cleaning to demanding high-pressure surface preparation. Available configurations can be supplied with optional ATEX, Exd IIB T4 Gb, and Exd IIC T4 Gb certification according to project requirements.
Fussen ATEX pressure washer solutions are particularly suited to industries such as:
With working pressures available from approximately 150 bar up to 1000 bar, Fussen offers several explosion-proof pressure washer series to match different cleaning tasks, required flow rates, and operating conditions.
Unlike a conventional electric pressure washer, equipment operating in a potentially explosive atmosphere may require specially designed electrical components to reduce ignition risks. Fussen explosion-proof models incorporate features such as explosion-proof motors and control boxes, together with industrial high-pressure plunger pumps and robust machine construction.
Depending on the model, additional features include stainless steel components, safety valves, water tanks, high-precision filtration, pressure regulating systems, and heavy-duty frames.
Whether you need a compact system for routine plant cleaning or a higher-pressure machine for demanding industrial maintenance, Fussen can help configure the pressure, flow rate, pump materials, and explosion-protection requirements around your application.
Choose from Fussen's explosion-proof pressure washer series according to your required working pressure, flow rate, power, hazardous-area classification, and cleaning application.
Introduction
Designed for hazardous areas such as chemical plants, refineries, and fuel storage zones
Explosion-proof motor and electric control box for safer operation
Working pressure up to 250 bar
Flow rate up to 18 L/min
Suitable for equipment maintenance, industrial wash-down, and routine cleaning
Compact structure for easier movement between work areas
Stainless-steel frame for improved corrosion resistance
High-pressure plunger pump for reliable, long-term performance
Key Features
High Explosion-Proof Rating: Optional ATEX, Exd IIB T4 Gb and Exd II C T4 Gb certifications
Convenient to Move: Compact design, easy to handle, and space-saving.
Explosion-Proof Motor: Ensures safe operation in explosive atmospheres.
Explosion-Proof Control Box: Provides reliable protection in explosive atmospheres.
Premium Plunger Pump: High-pressure pump with ceramic plungers and durable seals for long-term stable performance.
Key Components
| Explosion-Proof Electric Control Box | Stainless Steel Pressure Gauge |
| Industrial Explosion-Proof Motor | Stainless Steel Heavy-Duty Frame |
| Coupling | Solid Tires |
| High-Pressure Plunger Pump | High-Pressure Gun |
| Pressure Regulating Valve | Fan-Shaped Nozzle |
| High-Precision Filter | High-Pressure Hose |
Models And Specifications
| Model | Voltage(Ph/V/Hz) | FlowRate(L/min) | Pressure(Bar/Mpa/PSI) | Power( kW ) | RPM | Weight( kg ) | Dimensions(L x W x H mm) |
| FAE-EX 15/15 | 3/380/50 | 15 | 150/15/2175 | 5.5 | 1450 | 95 | 780x640x500 |
| FAE-EX 15/20 | 3/380/50 | 15 | 200/20/2900 | 5.5 | 1450 | 95 | 780x640x500 |
| FAE-EX 15/25 | 3/380/50 | 15 | 250/25/3625 | 7.5 | 1450 | 110 | 780x640x500 |
| FAE-EX 18/20 | 3/380/50 | 18 | 200/20/2900 | 7.5 | 1450 | 110 | 780x640x500 |
Introduction
Designed for heavier cleaning in hazardous industrial environments
Industrial explosion-proof motor and control system
Working pressure up to 350 bar
Flow rate up to 21 L/min
Suitable for petrochemical plants, offshore platforms, and industrial facilities
High-pressure plunger pump for stable output
Heavy-duty stainless-steel frame for corrosion resistance
Pneumatic tires for easier movement on uneven ground
Built for higher-output cleaning without compromising safety or reliability
Key Features
High Explosion-Proof Rating: Optional ATEX, Exd IIB T4 Gb and Exd II C T4 Gb certifications
Convenient to Move: Compact design, easy to handle, and space-saving.
Explosion-Proof Motor: Ensures safe operation in explosive atmospheres.
Explosion-Proof Control Box: Provides reliable protection in explosive atmospheres.
Premium Plunger Pump: High-pressure pump with ceramic plungers and durable seals for long-term stable performance.
Key Components
| Explosion-Proof Electric Control Box | Float Valve |
| Industrial-Grade Explosion-Proof Motor | High-Precision Filter |
| Coupling | Stainless Steel Frame |
| High-Pressure Plunger Pump | Pneumatic Tires |
| Pressure Regulating Valve | High-Pressure Gun |
| Stainless Steel Pressure Gauge | Fan-Shaped Nozzle |
| Stainless Steel Water Tank | High-Pressure Hose |
Models And Specifications
| Model | Voltage(Ph/V/Hz) | FlowRate(L/min) | Pressure(Bar/Mpa/PSI) | Power( kW ) | RPM | Weight( kg ) | Dimensions(L x W x H mm) |
| FBE-EX 15/30 | 3/380/50 | 15 | 300/30/4350 | 9.2 | 1450 | 200 | 980 x 680 x 1080 |
| FBE-EX 15/35 | 3/380/50 | 15 | 350/35/5075 | 11.0 | 1450 | 215 | 980 x 680 x 1080 |
| FBE-EX 18/28 | 3/380/50 | 18 | 280/28/4060 | 11.0 | 1450 | 215 | 980 x 680 x 1080 |
| FBE-EX 21/25 | 3/380/50 | 21 | 250/25/3625 | 11.0 | 1450 | 215 | 980 x 680 x 1080 |

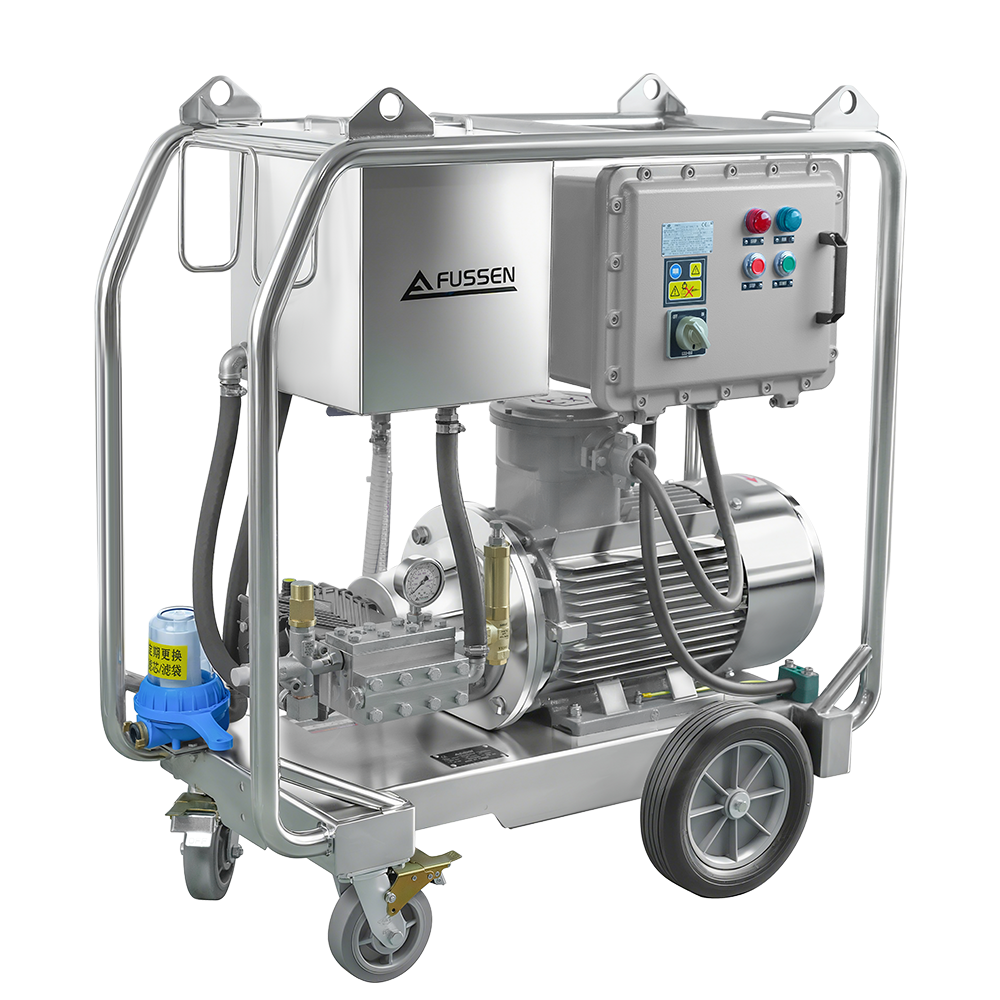

Introduction
Designed for high-pressure cleaning in hazardous industrial environments
Explosion-proof motor and electric control box
Working pressure up to 600 bar
Flow rate up to 22 L/min
Suitable for petrochemical plants, gas facilities, and industrial wash-down areas
High-pressure plunger pump for stable performance
Stainless-steel water tank for reliable water supply
Heavy-duty construction for demanding site conditions
Built for professional cleaning in high-risk environments
Key Features
High Explosion-Proof Rating: Optional ATEX, Exd IIB T4 Gb and Exd II C T4 Gb certifications
Convenient to Move: Compact design, easy to handle, and space-saving.
Explosion-Proof Motor: Ensures safe operation in explosive atmospheres.
Explosion-Proof Control Box: Provides reliable protection in explosive atmospheres.
Premium Plunger Pump: High-pressure pump with ceramic plungers and durable seals for long-term stable performance.
Key Components
| Explosion-Proof Electric Control Box | Stainless Steel Water Tank |
| Industrial-Grade Explosion-Proof Motor | Stainless Steel Float Valve |
| Coupling | Carbon Steel Heavy-Duty Frame |
| High-Pressure Plunger Pump | Solid Tires |
| Pressure Regulating Valve | Swivel Wheels |
| Safety Valve | High-Pressure Gun |
| Stainless Steel Pressure Gauge | Fan-Shaped Nozzle |
| High-Precision Filter | High-Pressure Hose |
Models And Specifications
| Model | Voltage(Ph/V/Hz) | FlowRate(L/min) | Pressure(Bar/Mpa/PSI) | Power( kW ) | RPM | Weight( kg ) | Dimensions(L x W x H mm) |
| FCE-EX 21/35 | 3/380/50 | 21 | 350/35/5075 | 15 | 1450 | 310 | 1250 x 580 x 1250 |
| FCE-EX 15/50 | 3/380/50 | 15 | 500/50/7250 | 15 | 1450 | 310 | 1250 x 580 x 1250 |
| FCE-EX 22/50 | 3/380/50 | 22 | 500/50/7250 | 22 | 1450 | 310 | 1250 x 580 x 1250 |
| FCE-EX 18/60 | 3/380/50 | 18 | 600/60/8700 | 22 | 1450 | 310 | 1250 x 580 x 1250 |
Introduction
Designed for extreme high-pressure cleaning in hazardous environments
Industrial explosion-proof motor and control system
Working pressure up to 1000 bar
Flow rate up to 36 L/min
Suitable for refineries, chemical plants, and hazardous industrial areas
Ideal for heavy equipment cleaning, industrial maintenance, and surface preparation
High-pressure plunger pump for reliable output
Stainless-steel frame for corrosion resistance and durability
Built for stable operation under demanding working conditions
Designed for long service life and professional industrial use
Key Features
High Explosion-Proof Rating: Optional ATEX, Exd IIB T4 Gb and Exd II C T4 Gb certifications
Convenient to Move: Compact design, easy to handle, and space-saving.
Explosion-Proof Motor: Ensures safe operation in explosive atmospheres.
Explosion-Proof Control Box: Provides reliable protection in explosive atmospheres.
Premium Plunger Pump: High-pressure pump with ceramic plungers and durable seals for long-term stable performance.
Key Components
| Intelligent Electric Control Box | Stainless Steel Frame |
| Industrial-Grade Explosion-Proof Motor | Solid Tires |
| High-Pressure Plunger Pump | Swivel Wheels |
| Pressure Regulating Valve | High-Pressure Gun |
| High-Precision Filter | Fan-Shaped Nozzle |
| Stainless Steel Pressure Gauge | High-Pressure Hose |
Models And Specifications
| Model | Voltage(Ph/V/Hz) | FlowRate(L/min) | Pressure(Bar/Mpa/PSI) | Power( kW ) | RPM | Weight( kg ) | Dimensions(L x W x H mm) |
| FDE-EX 30/50 | 3/380/50 | 30 | 500/50/7250 | 30 | 1450 | 450 | 1350 x 680 x 1200 |
| FDE-EX 20/80 | 3/380/50 | 20 | 800/80/11600 | 30 | 1450 | 450 | 1350 x 680 x 1200 |
| FDE-EX 15/100 | 3/380/50 | 15 | 1000/100/14500 | 30 | 1450 | 450 | 1350 x 680 x 1200 |
| FDE-EX 36/50 | 3/440/60 | 36 | 500/50/7250 | 36 | 1750 | 450 | 1350 x 680 x 1200 |
| FDE-EX 24/80 | 3/440/60 | 24 | 800/80/11600 | 36 | 1750 | 450 | 1350 x 680 x 1200 |
| FDE-EX 18/100 | 3/440/60 | 18 | 1000/100/14500 | 36 | 1750 | 450 | 1350 x 680 x 1200 |
The fundamental cleaning principle remains the same: a high-pressure pump pressurizes water and delivers it through a hose, gun, and nozzle.
The important difference is the operating environment.
A standard industrial electric pressure washer may be suitable for factories, workshops, construction sites, and other normal industrial environments. Where an explosive atmosphere may be present, however, electrical equipment can require appropriate explosion protection.
Fussen's EX series therefore incorporates features such as explosion-proof motors and explosion-proof electrical control systems while maintaining the high-pressure cleaning capabilities required for industrial work.
Fussen's explosion-proof pressure washers are available with optional ATEX, Exd IIB T4 Gb, and Exd IIC T4 Gb certification according to project requirements.
These markings should not be treated simply as product features. They relate to the type of explosion protection and the conditions for which equipment is intended.
For this reason, buyers should provide Fussen with the hazardous-area classification and certification requirements for their project before selecting a machine.
Fussen can then determine which equipment configuration is appropriate for the intended installation.
Higher pressure is not automatically better. The appropriate combination of pressure and water flow depends on what needs to be removed, the surface being cleaned, required productivity, and operating conditions.
Fussen's explosion-proof range covers several performance levels:
| Fussen Series | Available Pressure Range | Typical Positioning |
|---|---|---|
| FAE-EX | 150–250 bar | General industrial high-pressure cleaning |
| FBE-EX | 250–350 bar | Heavier industrial cleaning |
| FCE-EX | 350–600 bar | Heavy-duty cleaning and demanding surface work |
| FDE-EX | 500–1000 bar | Very high-pressure industrial cleaning |
For example, the FAE-EX range offers models from 150 to 250 bar with flow rates of 15–18 L/min, while the FDE-EX extends to 1000 bar and includes higher-pressure configurations for substantially more demanding cleaning work.
The correct machine should therefore be selected around the cleaning task rather than simply specifying the highest available pressure.
Before selecting an explosion-proof high-pressure washer, consider five main factors.
Determine where the machine will operate and what explosion-protection requirements apply to that location.
This should be established before choosing the pressure washer model.
Different contaminants and surfaces require different cleaning intensities.
Fussen's EX range progresses from 150-bar configurations through to models capable of reaching 1000 bar, allowing equipment to be matched more closely to the application.
Pressure alone does not determine cleaning productivity.
Flow rate affects the amount of water delivered to the surface and can be particularly important when removing larger volumes of loosened contamination.
Fussen EX configurations range from approximately 15 L/min to 36 L/min depending on model and operating pressure.
Operating conditions can influence material selection.
Fussen offers different pump configurations across the EX range, including nickel-plated brass, brass, and stainless steel options on applicable models. Higher-pressure configurations can incorporate stainless steel high-pressure pumps.
The cleaning tool at the end of the system is just as important as the pump.
Depending on the application, equipment can be configured with high-pressure hoses, high-pressure guns, fan-shaped nozzles, rotating nozzles, and other suitable accessories.
One of the most common mistakes when specifying an industrial pressure washer is focusing entirely on PSI or bar.
Pressure determines the intensity with which the water reaches the surface, while flow determines how much water is available to carry loosened material away.
This means two pressure washers operating at the same pressure can perform differently if their flow rates are substantially different.
For an ATEX pressure washer, the objective should therefore be to identify the appropriate pressure + flow + nozzle + explosion-protection configuration for the cleaning task.
Fussen has specialized in high-pressure water jet technology since 2001 and develops high-pressure pumps and complete cleaning systems for demanding industrial applications.
Fussen's EX series covers working pressures from approximately 150 to 1000 bar, allowing buyers to select equipment for different levels of industrial cleaning.
The EX series uses explosion-proof motors and electrical control systems designed for applications requiring additional protection in potentially explosive environments.
Optional ATEX, Exd IIB T4 Gb, and Exd IIC T4 Gb configurations are available according to project requirements.
Fussen develops high-pressure plunger pumps using ceramic or alloy steel plungers depending on the application, together with sealing and filtration systems designed for reliable industrial operation.
Beyond the pressure washer itself, Fussen provides high-pressure hoses, guns, nozzles, filters, and other accessories, allowing the cleaning system to be configured around the customer's application.
Fussen operates under the ISO 9001 quality management system, and its high-pressure washer products are CE certified. The company's equipment is supplied to markets including Europe, the Middle East, Southeast Asia, and South America.
An ATEX pressure washer is a high-pressure cleaning system configured for applications where potentially explosive atmospheres may be present and suitable explosion protection is required.
ATEX certification is listed as an optional configuration for Fussen's explosion-proof pressure washer range. Buyers should provide their project certification and hazardous-area requirements when requesting equipment.
Within Fussen's current explosion-proof washer range, the FDE-EX series offers configurations reaching 1000 bar / 100 MPa / 14,500 PSI.
The primary difference is their available pressure, flow, power, construction, and equipment configuration. FAE-EX covers approximately 150–250 bar, FBE-EX 250–350 bar, FCE-EX 350–600 bar, and FDE-EX 500–1000 bar.
Yes. Selection should consider the required working pressure, flow rate, cleaning application, electrical supply, operating environment, and applicable explosion-protection requirements.
For faster equipment selection, provide your required pressure and flow rate if known, cleaning application, material or contamination being removed, available electrical supply, operating environment, hazardous-area requirements, required certification, and any special accessory requirements.
Selecting an explosion-proof pressure washer requires the right combination of cleaning performance and hazardous-area requirements.
Fussen offers multiple explosion-proof high-pressure washer configurations from 150 to 1000 bar, allowing systems to be selected according to pressure, flow rate, electrical requirements, operating conditions, and required explosion-protection configuration.
Send Fussen your application, required pressure and flow, power supply, hazardous-area classification, and certification requirements to identify the appropriate pressure washer configuration for your project.
