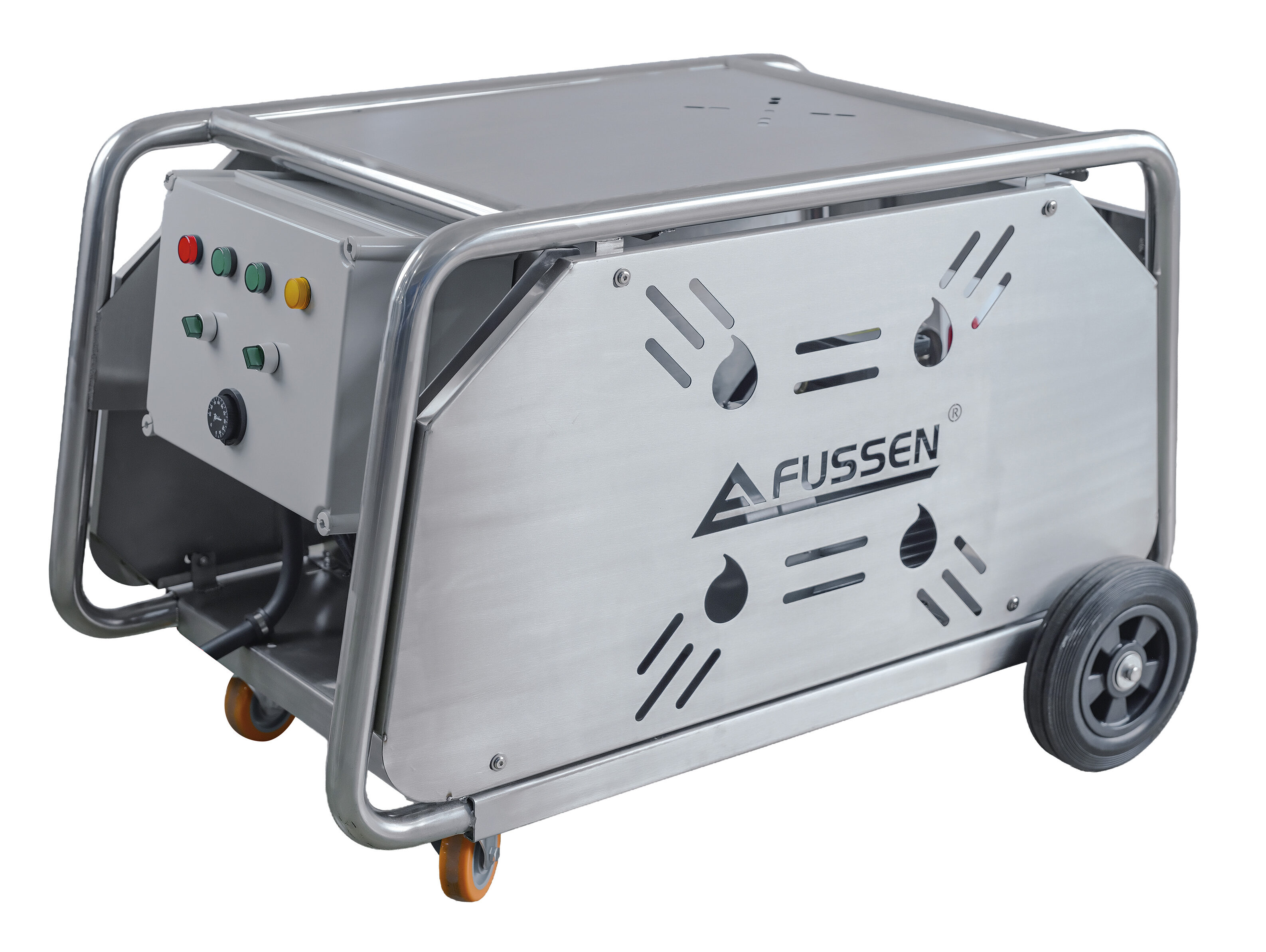

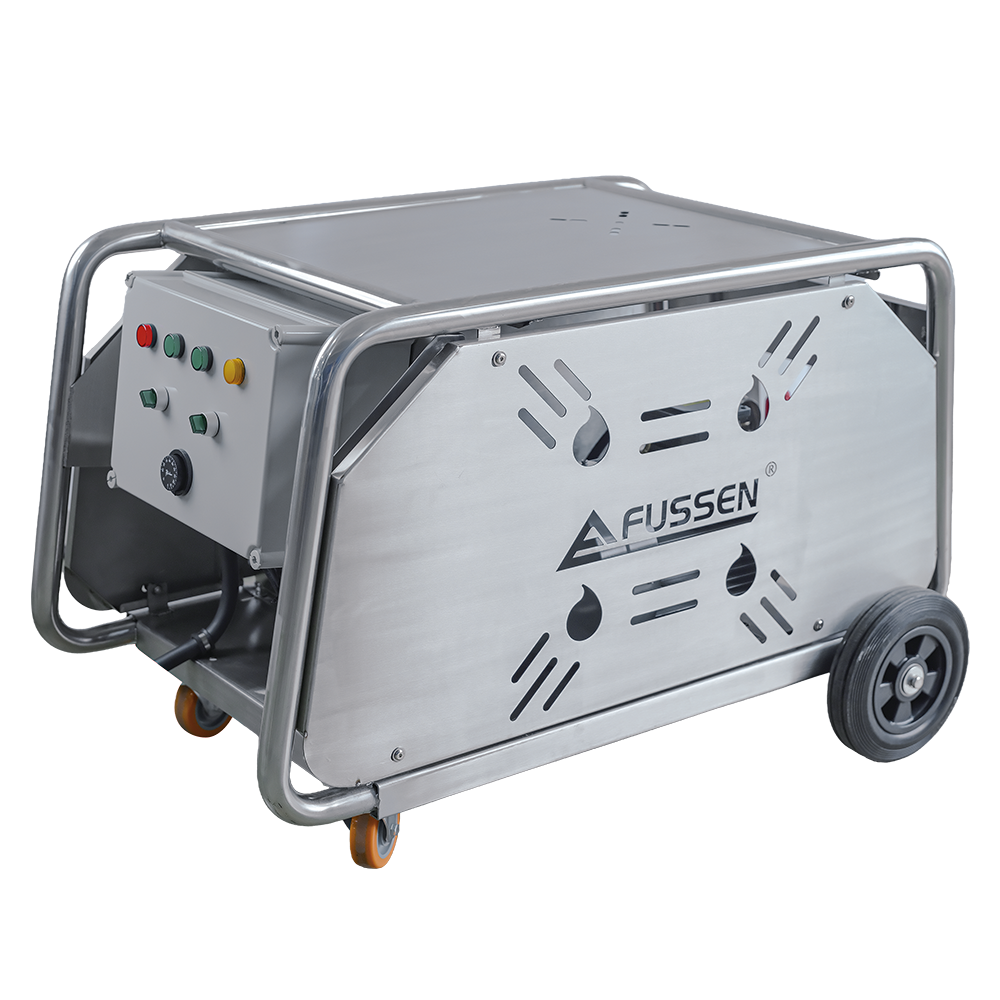

FHE Series

The FHE Series electric hot water high-pressure washer is designed for efficient cleaning and degreasing in environments where low noise, zero emissions, and stable performance are essential, such as shipyards, workshops, food processing areas, and industrial plants. Its electric heating system delivers hot water up to 80°C, effectively enhancing cleaning efficiency while breaking down grease, oil, and dirt without the need for diesel fuel.

Powered by an industrial-grade motor and equipped with a high-pressure plunger pump, the system ensures reliable and continuous operation under demanding working conditions. The electric heating design eliminates exhaust emissions, reduces maintenance complexity, and provides a cleaner and quieter working environment.

For customers seeking a clean, low-noise, and environmentally friendly hot water solution with solid industrial performance, the FHE Series is the ideal choice.


DESCRIPTION
MODELS AND SPECIFICATIONS
FEATURES
DOCUMENTS

Description

Key Components

Intelligent Electric Control Box

Industrial-Grade Motor

High-Pressure Plunger Pump

Pressure Switch

Pressure Regulating Valve

High-Precision Filter

Water Tank

Key Components

Stainless Steel Pressure Gauge

High-Strength Metal Shell

Solid Tires

High-Pressure Gun

Fan-Shaped Nozzle

Electric Heating System



 Accessories

High Pressure Gun

Fan-Shaped Nozzle

High-Pressure Hose

Models And Specifications

Model

Voltage

(Ph/V/Hz)

FlowRate

(L/min)

Pressure

(Bar/Mpa/PSI)

Power

( kW )

RPM

Weight

( kg )

Dimensions

(L x W x H mm)

FHE 15/203/380/5015200/20/29005.514501301160 x 870 x 650
FHE 18/203/380/5018200/20/29007.514501301160 x 870 x 650
FHE 15/253/380/5015250/25/36257.514501301160 x 870 x 650

Features

Simple Control

Easy-to-use panel with temperature adjustment knob and alarm indicator light.

Energy-Saving

Pressure switch shuts down the motor when the gun is released, saving energy and protecting the environment.

Premium Plunger Pump

High-pressure plunger system with ceramic plungers and durable seals for long-term stable operation.

Documents
